1203C GNSS/SBAS Receiver

Designed for business, regional, airline transport and heavy rotary wing aircraft, the 1203C GNSS/SBAS receiver provides state-of-the-art aviation GPS technology in a proven package

Download Product Sheet

1203C – SBAS/GNSS RECEIVER

Retrofit GNSS Receiver for Global NextGen Position Source Applications

As a certified ADS-B position source approved for all ICAO jurisdictions, the integrated 15-channel 1203C SBAS/GNSS sensor is part of a fully rule-compliant ADS-B Out system when paired with a compatible, certified Mode S transponder. Providing reliable service to fleets worldwide, the 1203C also serves as the approved position source for CPDLC, TAWS/FMS, RNP and other NextGen applications.

Download Product Sheet

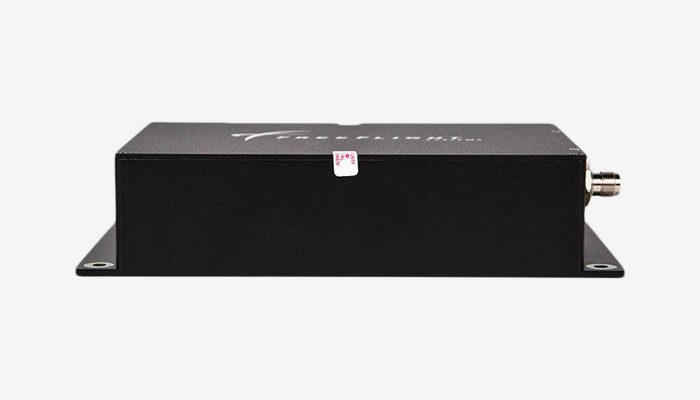

1203 GNSS SBAS GPS Receiver Front Angle Product Feature Grey Background

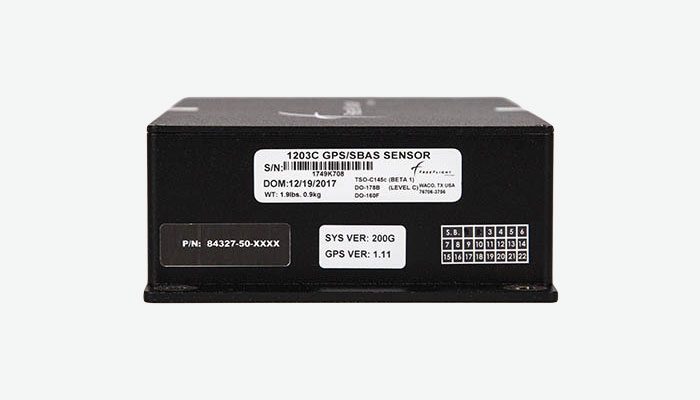

1203 GNSS SBAS GPS Receiver Front Left Angle Product Feature Grey Background

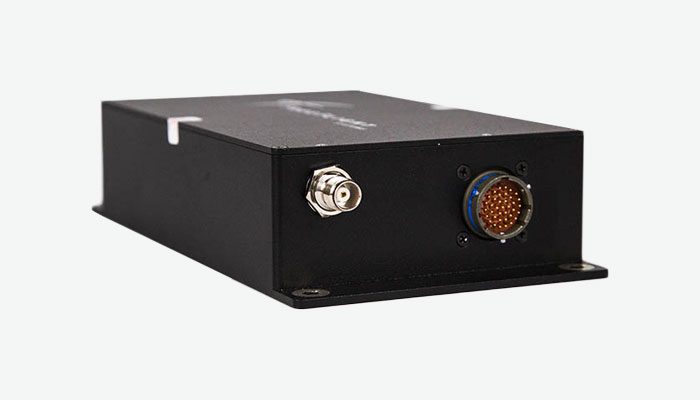

1203 GNSS SBAS GPS Receiver Side Angle Product Feature Grey Background

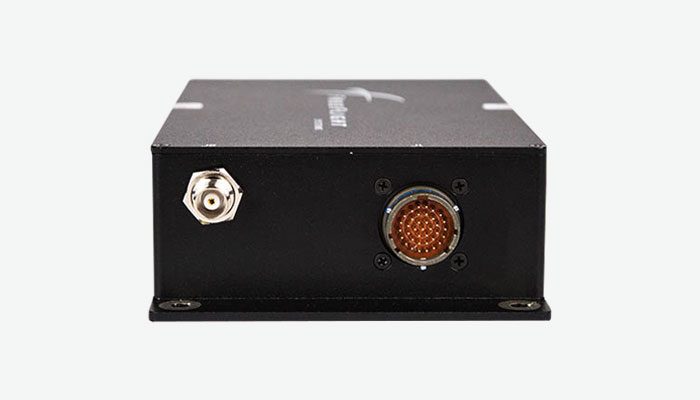

1203 GNSS SBAS GPS Receiver Front Right Angle Product Feature Grey Background
1203 GNSS SBAS GPS Receiver Back Angle Product Feature Grey Background

1203C™ CAPABILITIES

High Performance 15-Channel GPS Engine

Integrated 15-channel GPS receiver with a position update rate of five times per second.

Meets Position Source Requirements

Meets position source requirements for Required Navigation Performance (RNP) and other L-NAV operations.

Fully Rule-Compliant ADS-B Out System

Fully rule-compliant ADS-B Out system when paired with a compatible Mode S Extended Squitter transponder.

Enhanced Precision for Approaches

Meets the FAA, ICAO, and Eurocontrol navigation regulations for all flight phases. It also allows tracking new SBAS satellite entrants such as KASS and South Pan.

Low Cost of Ownership

Field experience, based on an estimated 1.5 million flight hours
of service, yields an actual MTBF exceeds 100,000 hours.

Wide Variety of Platform Availability

Designed and supplemental type certified for a variety of platforms including business jets, commercial air transport, and rotorcraft.

Multiple ADS-B, TAWS, & CPDLC STCs

Multiple STCs for ADS-B, TAWS, and CPDLC as a position and timing source.

TSO Certified

TSO-C145c certified and approved to DO-160F and DO-178B Level C

Pricing

Various hardware and service options available. For accurate pricing, contact a technical sales expert.

Looking to Upgrade?

FreeFlight Systems offers leading products and solutions to improve situational awareness and to achieve compliance for aviation’s rapidly evolving regulations.

Antennas & Accessores

FreeFlight Systems offers numerous antenna and accessories to help you get the most out of your flight operations.

Industry Leading STCs

With hundreds of STCs for leading airframes, FreeFlight Systems or its associated sister companies can offer you STCs on virtually any airframe.

Get started now

Need more information? Get in touch with FreeFlight Systems’ technical experts to learn more about our GNSS/SBAS Receiver solutions.

Get Started

1203C STCs
